Steel Glossary
1.2842 O 2/BO 2

AISI O2, BS BO2, AFNOR 90 M V 8

Chemical Composition %
C Si Mn Cr V
max. 0.95 0.40 2.20 0.50 0.20
min. 0.85 0.10 1.80 0.20 0.05

Cold work tool steel for the production of tools, gauges, fixtures, templates, guide rails, and components of all kinds.

You can obtain this material from us as precision flat steel (standard and special dimensions), VarioPlan, VarioRond, and as raw material cut to size.

You can also get 1.2842 from us, tailored to your specifications, as a standard material for machine parts and hardened guide rails up to 40mm thickness.

When heat-treating 1.2842, it is essential to consider that it is a through-hardening steel that experiences a volume change of approximately 1‰ during the process but exhibits very low distortion. Workpiece cross-sections over 40mm thickness might result in hardness levels lower than 58 – 62 HRC. For larger cross-sections of guide rails, we recommend 1.2363 or 1.2379, and for wear parts, consider 1.2436. For untreated components, we suggest Toolox 33: more cost-effective despite higher strength! The machinability is good and trouble-free.

The risk of cracks during repair welding exists, as is generally the case with tool steels.

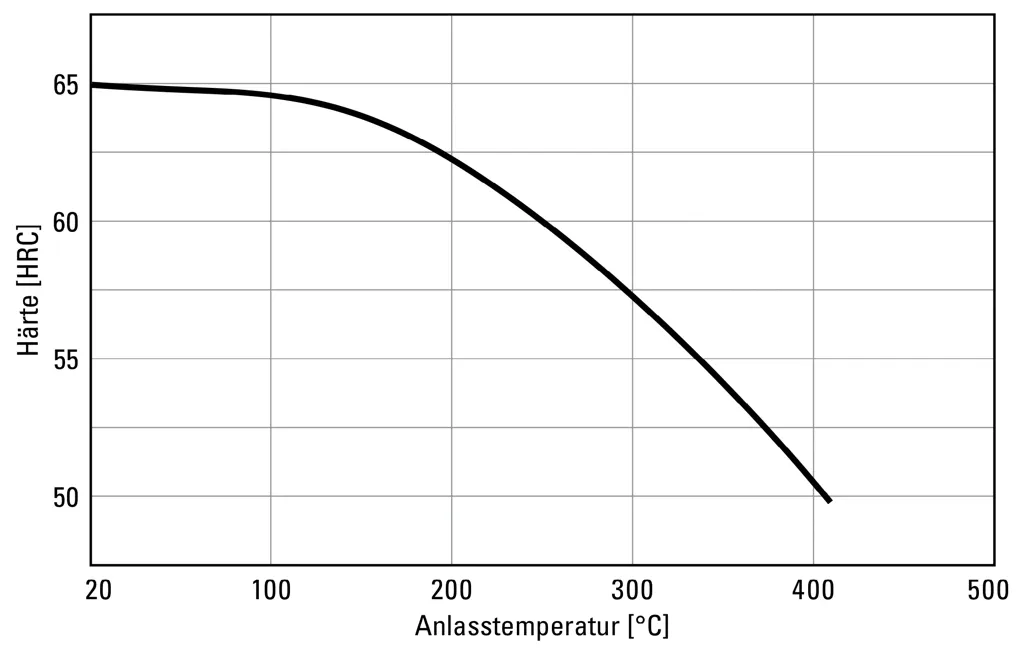

Tempering Diagramm

Hardening Temperature: 810°C, Cross-Sectional Sample: Square 20mm

Tempering Diagramm - 1.2842

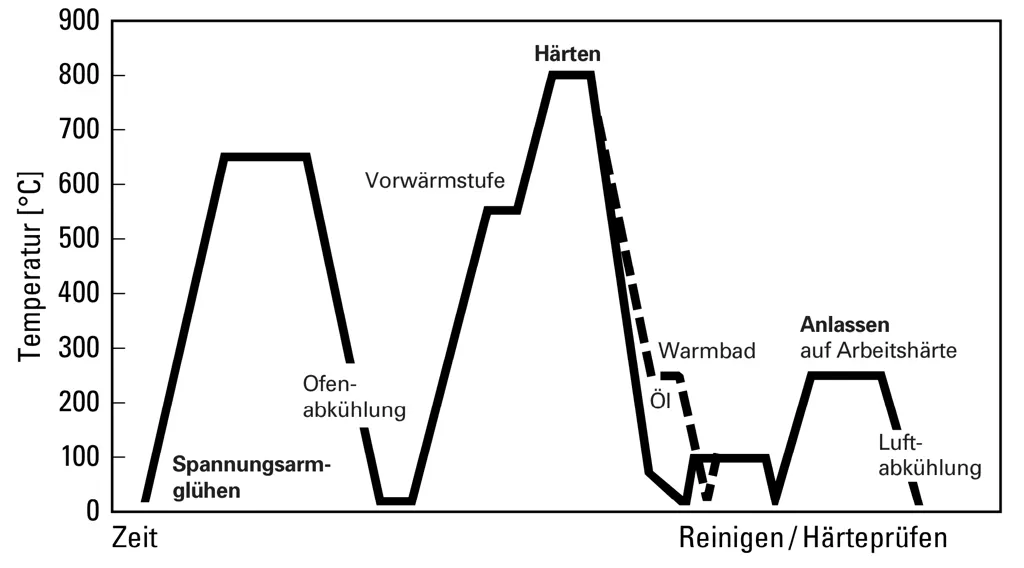

Heat Treatment Schedule
Heat Treatment Schedule - 1.2842

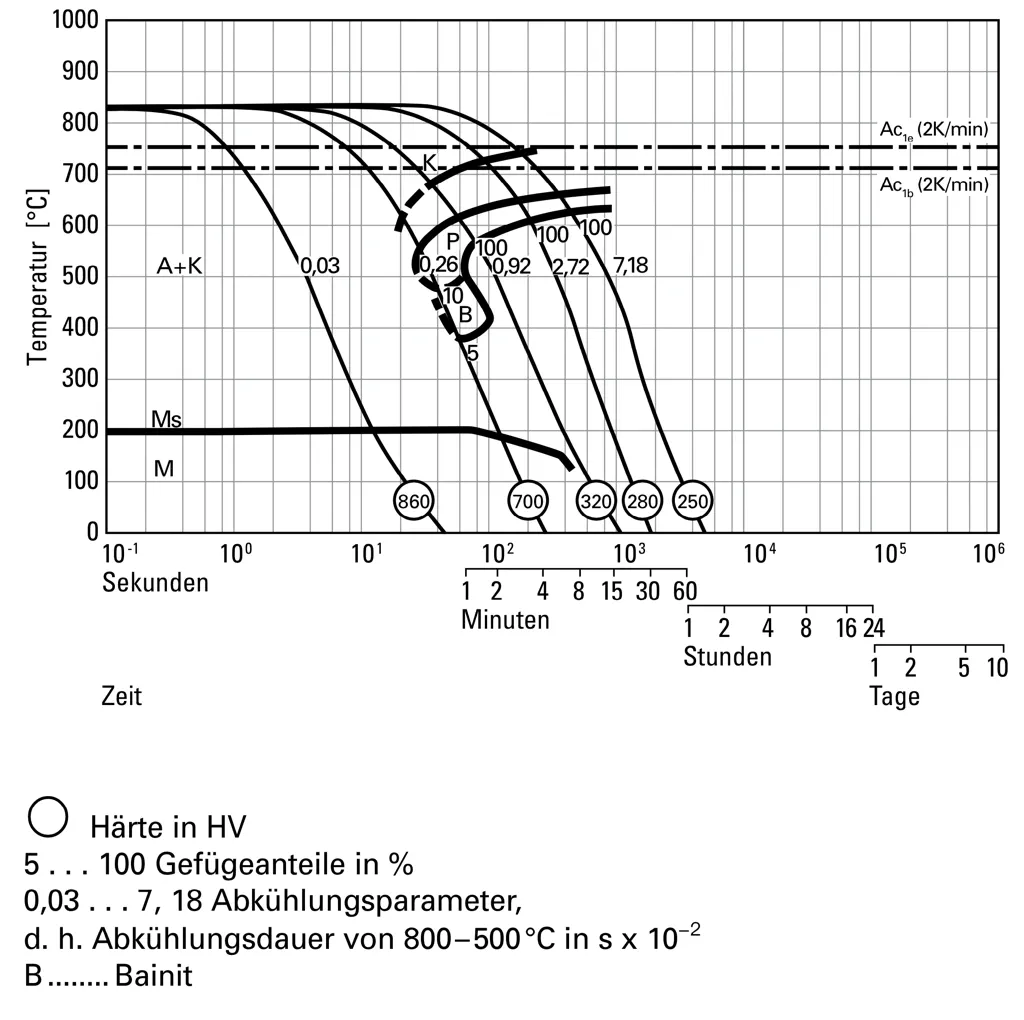

Continuous Cooling Transformation Diagram

Austenitization Temperature: 820°C, Holding Time: 15 Minutes

CCT Diagram - 1.2842

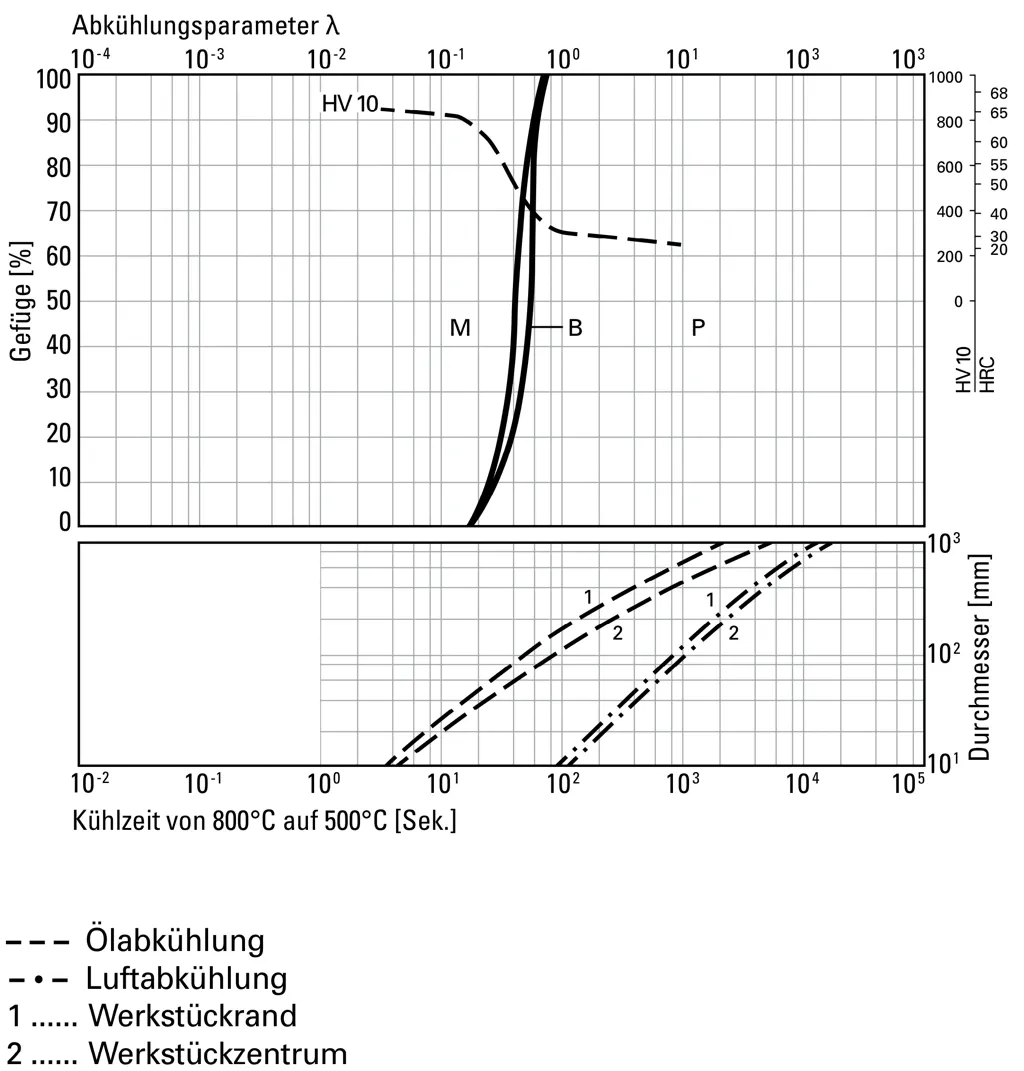

Microstructure Phase Diagram
Microstructure Phase Diagram - 1.2842

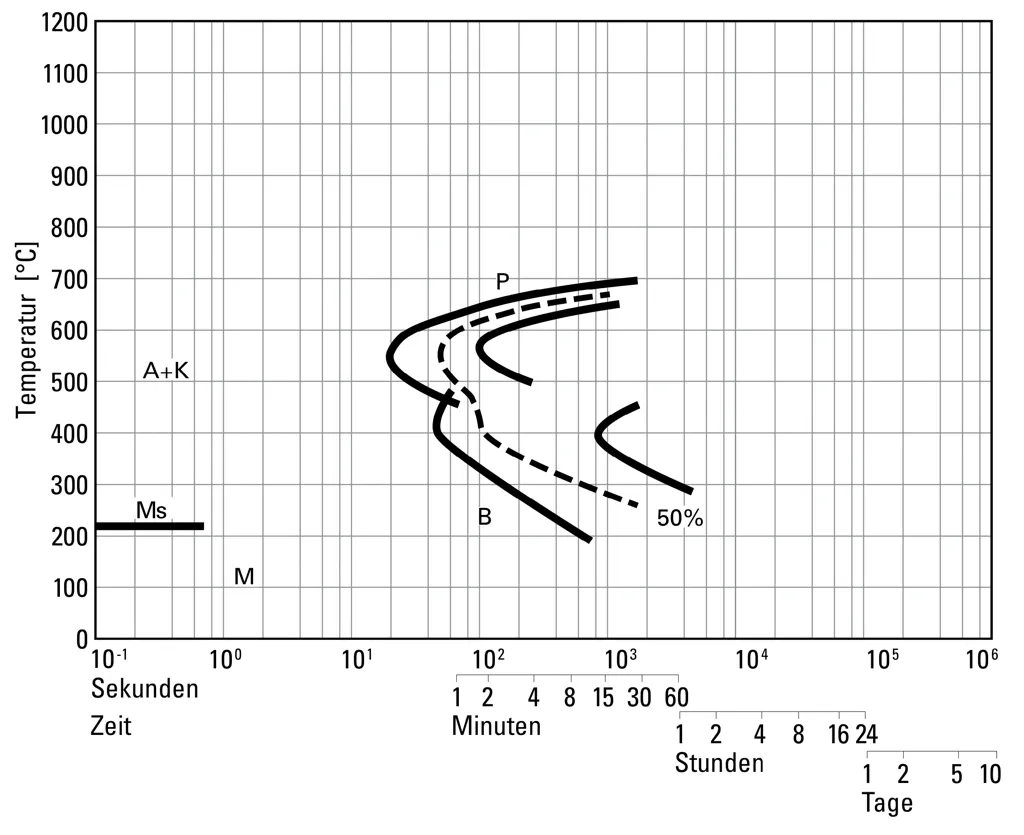

Isothermal Time Temperature Transformation Diagram

Austenitization Temperature: 820°C, Holding Time: 15 Minutes

Isothermal TTT Diagram - 1.2842

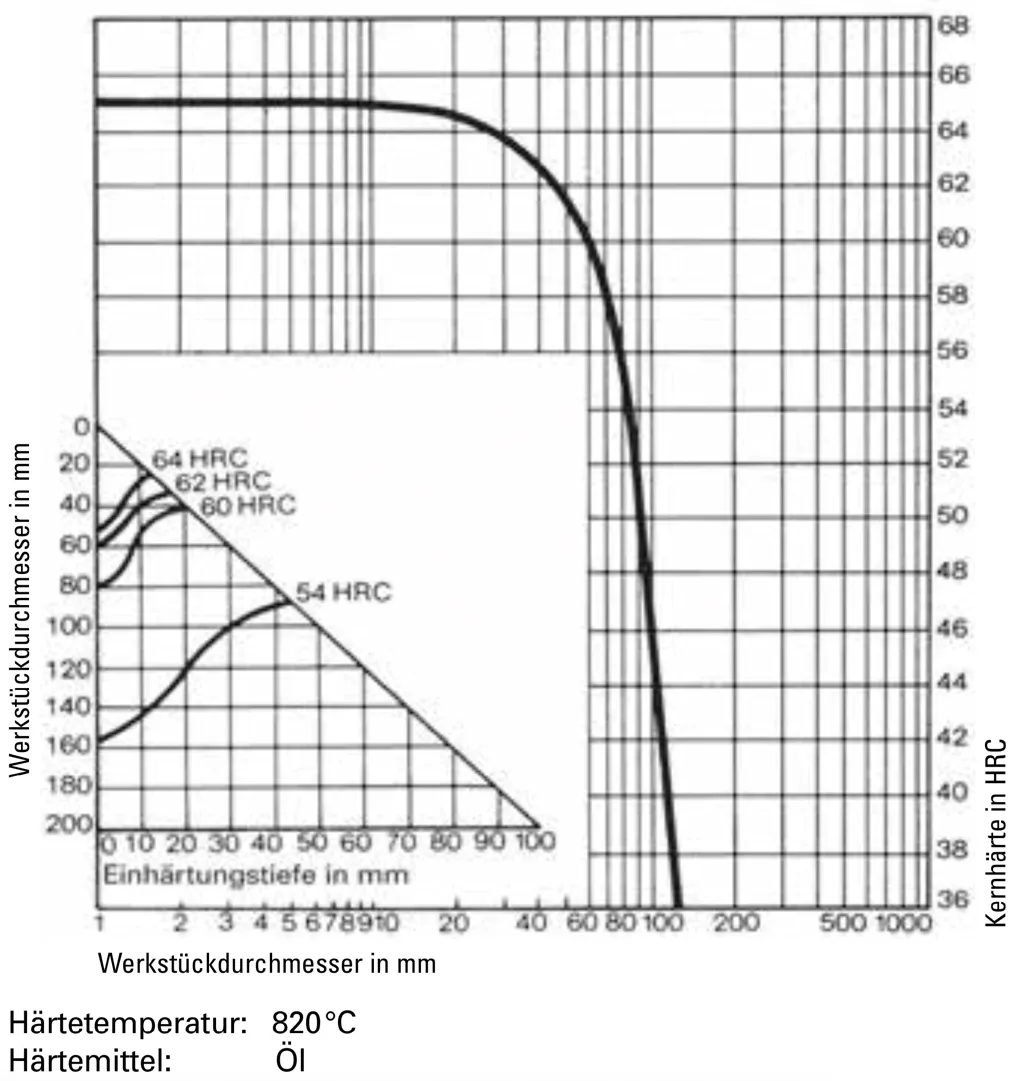

Dependency of Core Hardness and Effective Hardening Depth on Workpiece Diameter.
Dependency of Core Hardness and Effective Hardening Depth on Workpiece Diameter. - 1.2842
